DT-MMS. Powerful Multi-frequency Multi-band 16 BTS IMSI/IMEI/TMSI Catcher
The newest device

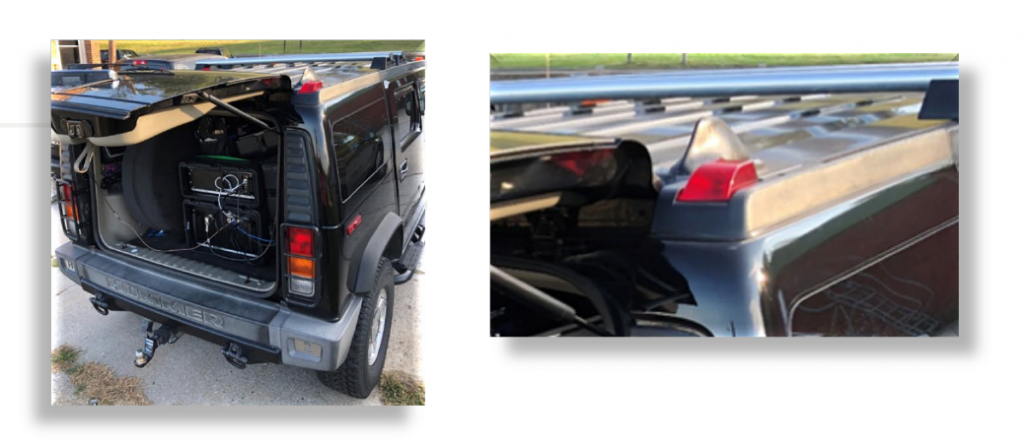

DT-MMS IMSI catcher in vehicle
|
Main characteristics
|
|||||||||||||||||||||||||||||||||||||||||||||||||
Multi-Channel, Multi-Band High Power Base Station
MORE POWER AND DISTANCE
WIRELESS NETWORK MONITORING & SCANNING
WIRELESS NETWORK MONITORING & SCANNING
FREQUENCY AGNOSTIC – FROM 400MHZ TO 4GHZ
FLEXIBLE CONFIGURATION - UP TO 16 RADIOS
LTE/UMTS/GSM/CDMA2000
LTE/UMTS/GSM/CDMA2000
The DT-MMS is a multi-channel, multi-band high power base stations. The system can be configured to support up to 16 base stations transmitting on any combination of up to 6 frequency bands simultaneously. Each frequency band utilizes highly filtered 25 Watts or 100 Watts power amplifiers. The system only requires a single wide-band antenna for operation. This simplifies the integration task and makes it possible for the system to be moved from one vehicle to another.

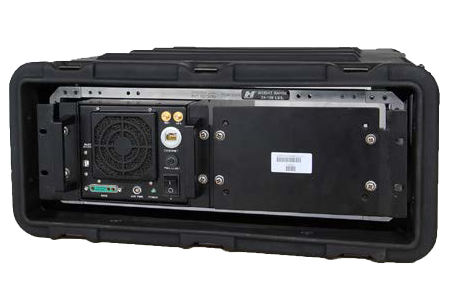

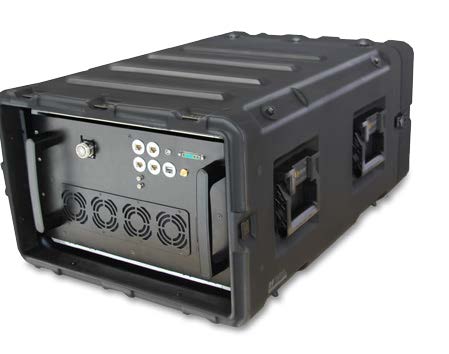

Each BTS can be configured dynamically and independently on any frequency and radio access technology supported by the baseband radios: GSM/GPRS/EDGE, CDMA2000, 3G or LTE-FDD/ TDD. The system offers frequency agility from 400MHz to 4 GHz on each radio. The DT-MMS system includes: power amplification, filtering, cabling, antenna(s) and the multi-radio baseband unit. It is compatible with both portable use cases and vehicular applications, allowing for high operational flexibility in the field. The DT-MMS is offered in versatile configurations, including a rugged portable rack-mount enclosure that houses the 6U rack mount Transportable Amplification Unit and separate enclosure for one or two 3U half-width Portable Base Station Unit.
Portable Base Station Unit (PBU)
|
The PBU is at the core of the DT-MMS design. It is a multi-channel base station unit
that includes up to 8 base stations. Each radio is capable of supporting a 2G, 3G or
LTE (FDD and TDD) base station as well as monitoring the surrounding mobile networks.
The system is frequency agile and can support all cellular bands from 400MHz
to 4 GHz. The PBU can either be used as the radio source for the Transportable
Amplification Unit (TAU) when a larger coverage is required or with the lower power
Portable Amplification Unit (PAU) for short range operations.
|  |

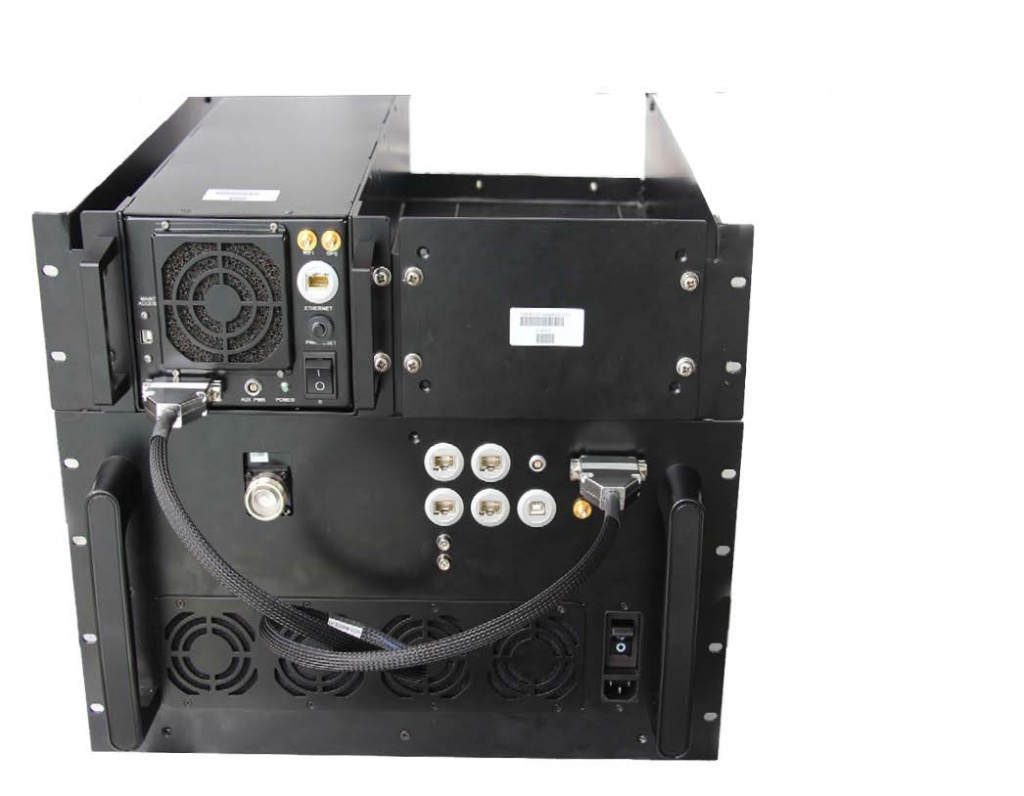

Transportable Amplification Unit (TAU)
|
The TAU is a high power multi-band radio front end that can amplify
the output of one or two PBUs (up to 16 base stations) simultaneously.
The TAU supports up to 6 frequency bands (FDD and
TDD) simultaneously. The peak output power per band can be 25 Watts
or 100 Watts depending on the configuration. The system only requires a
single wide-band antenna for cellular operation.
All transmit and receive bands are highly filtered and the status of each power
amplifier is constantly monitored and reported. The output power of each cell can be
independently controlled via a graphical user interface.
|  |
| File Title | Release Date | File Type | Size (mb) | Action |
|---|---|---|---|---|
| IMSI Catcher DT-MMS with 16 base stations. Specifications | 11-06-2018 | Documentation (pdf) | 0.95 MB |  download |
| End User Certificate (EUC) to apply for purchase | 03-03-2021 | Documentation (pdf) | 0.09 MB | download |
To access this product file, get partner STE status
MANAGED ACCESS • BORDER SECURITY • LAW ENFORCEMENT • DISASTER RECOVERY
| IMSI/IMEI catching – in this mode the system detects identities of all mobile phones within it’s effective range.
Selective jamming of communication – in this mode system operator can block communication of all mobile phones defined as targets. Presence verification ‐ This operational mode is intended to detect and select targets of interest (according to IMSI/IMEI identifications) from the total number of subscribers located within operational area of the system. Data Analysis / Target Correlation ‐ This mode allows the system to detect identities of mobile phones (IMSI/IMEI) which belong to particular targets. Direction Finding Support – the system forces target’s phone to get into transmit mode (without any visible mark) so that DF / Homing systems can track the transmission direction to identify the target mobile. Downgrade from 3G / 4G to GSM for operation by an active or passive interception complex |  |
Based on the above capabilities, the system can support variety of operational needs such as:
‐ Detection of identities of all mobile phones in the areas of interest;
‐ Identifying of mobile phones which belong to particular targets;
‐ Selective jamming of phones in restricted areas (prisons, embassies, etc);
‐ Presence detection of targets in specific area of interest (border crossing, airports, public areas);
‐ Detect location of hidden mobiles (prisons, classified places);
System can operate with variety of power sources such as AC supply, batteries, car supply etc and by that, it can be installed and operated in many types of applications and environments (fixed installation, remote control configuration, transportable, vehicular, man pack).
Attention:
The IMSI catcher operate only with IMSI, IMEI and TMSI
To get MSISDN (public number) need to use ONLY fully functional active interception systems
| File Title | Release Date | File Type | Size (mb) | Action |
|---|---|---|---|---|
| IMSI Catcher DT-MMS with 16 base stations. Specifications | 11-06-2018 | Documentation (pdf) | 0.95 MB | download |
| End User Certificate (EUC) to apply for purchase | 03-03-2021 | Documentation (pdf) | 0.09 MB | download |
To access this product file, get partner STE status
|
Base kit
Catcher, Amplifiers, Android tablet,
carrying case, antennas, connecting wires,
power supply unit
Optional
Laptop, Amplifiers
Direct Finder (DF)
Power amplifier for 10 watts and more
Lithium Extended Battery
Various carrying bags
|  |
| File Title | Release Date | File Type | Size (mb) | Action |
|---|---|---|---|---|
| IMSI Catcher DT-MMS with 16 base stations. Specifications | 11-06-2018 | Documentation (pdf) | 0.95 MB | download |
| End User Certificate (EUC) to apply for purchase | 03-03-2021 | Documentation (pdf) | 0.09 MB | download |
To access this product file, get partner STE status
| File Title | Release Date | File Type | Size (mb) | Action |
|---|---|---|---|---|
| IMSI Catcher DT-MMS with 16 base stations. Specifications | 11-06-2018 | Documentation (pdf) | 0.95 MB | download |
| End User Certificate (EUC) to apply for purchase | 03-03-2021 | Documentation (pdf) | 0.09 MB | download |
To access this product file, get partner STE status
Video of IMSI / IMEI catcher in Registration mode
Video of IMSI / IMEI catcher in Scanning mode
| File Title | Release Date | File Type | Size (mb) | Action |
|---|---|---|---|---|
| IMSI Catcher DT-MMS with 16 base stations. Specifications | 11-06-2018 | Documentation (pdf) | 0.95 MB | download |
| End User Certificate (EUC) to apply for purchase | 03-03-2021 | Documentation (pdf) | 0.09 MB | download |
To access this product file, get partner STE status
| File Title | Release Date | File Type | Size (mb) | Action |
|---|---|---|---|---|
| IMSI Catcher DT-MMS with 16 base stations. Specifications | 11-06-2018 | Documentation (pdf) | 0.95 MB | download |
| End User Certificate (EUC) to apply for purchase | 03-03-2021 | Documentation (pdf) | 0.09 MB | download |
To access this product file, get partner STE status
 |
 Additional Product Information |
 |
 Long range of application - up to 1 km in the city |
| Wide frequency band from 400MHz up to 6GHz |
| Support of all standards: GSM, UMTS (3G), LTE (4G), CDMA (Optional) |
| Remote control |
| 3D Direct Finder. Shows target altitude |
| Exact target location on the map without leaving the car |
