Wideband amplifier for IMSI / IMEI / TMSI catcher

Print
The best price guarantee
Wideband Amplifier  for IMSI catcher
Wideband Amplifier for IMSI catcher
Main characteristics
SKU 2133
Vendor Intercept
Category IMSI Catchers
Standart 4G/2600/1800/2300/800/700 - 3G/850 /900/1700 /1900/2100 - More … 4G/2600/1800/2300/800/700 - 3G/850 /900/1700 /1900/2100 - 2G/900/1800/850/1900 - CDMA/450/800/1900 - WiFi/5000 - GPS - 5G - Bluetooth™
Frequency 400MHz - 3GHz
System output 4W
Power source 90-264AC, 24V DC, 3A
Active range (m) 300
Antenna Directional or omnidirectional
Q'ty of channels 2
Management API, IP
Delivery set Amplifier, Power supply
Dimensions, HWD 196 x 118 x 64 mm
Weight 1.6 kg
Shipment Worldwide

The Wideband Amplifier is a small (196 mm x 118 mm x 64 mm) dual RF front end that supports GSM/GPRS/EDGE, UMTS/HSPA/WCDMA, CDMA2000, and LTE-FDD/TDD capability varying from 700–950 MHz and 1.7–2.7 GHz.

This complete integrated RF front end is software-defined and offers frequency-agile, multi-standard RF capabilities, enough RF performance for small cell applications. The Wideband Amplifier is a portable fan-less enclosure housing two independent RF front end (RFE) cards and powered using an external battery.
It has a typical power consumption of 30W at 25°C ambient with both transmitters enabled.

The Wideband Amplifier  has an on-board Environment Management IC (EMIC) to monitor and respond to physical parameters such as RF output power, receiver interference, and operating temperature.

Software control of the Wideband Amplifier is handled by OnBoard Management (OBM), available with OBM version 2.0.1 and later. The plugin will probe and instantiate two distinct RfFrontend software objects, one for each of the two RFE cards (Card A & Card B) in the unit.

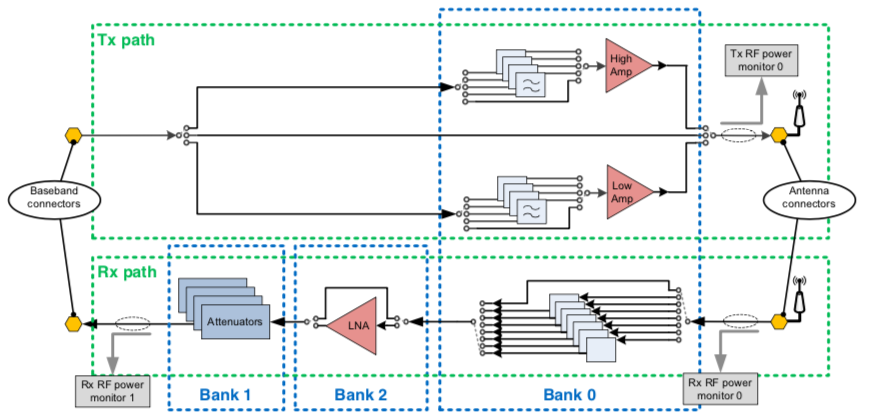

Each RFE card comprises 2 paths: a TX path and an RX path. The figure below illustrates how the RF paths are mapped and controlled by the OBM software: the TX path has only one bank controlling all components, while theRX path has 3 banks.

Catcher's Amplifier.png

When OBM probes the Wideband Amplifier, paths on Card A are mapped to the baseband side’s antenna connector (0,0)and paths on Card B are mapped to baseband connector (1,0). Refer to the OBM documentation for details on how to use antenna connector IDs to interact with the RFE.

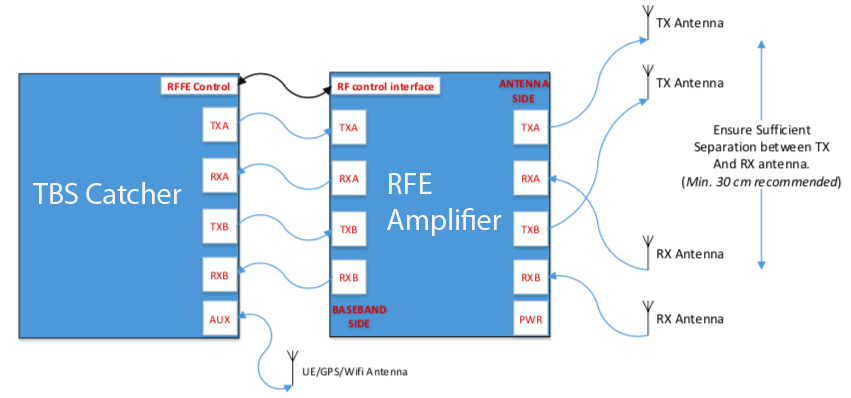

The figure below illustrates the connections between the Wideband Amplifier and the TBS-Catcher.


Ensure a minimum of 30 cm separation between the TX and RX antennas. Do not connect antennas
directly to the RF ports on the Wideband Amplifier. Attach antennas to the Wideband Amplifier using RF interconnection cables.
