The newest device

Cellular Selective IMSI blocker

Main characteristics

SKU	1936
Vendor	Intercept
Category	Jammers - IMSI Catchers
Standart	4G/2600/1800/2300/800/700 - 3G/850 /900/1700 /1900/2100 - More … 4G/2600/1800/2300/800/700 - 3G/850 /900/1700 /1900/2100 - 2G/900/1800/850/1900 - 5G
Frequency	4 GSM + 5 UMTS & LTE bands
System output	10 mW – 100W
Power source	Battery / 90 – 220VAC / 12VDC
Active range (m)	500
OS	Windows
Battery	Yes
Antenna	Omni or Directional
Q'ty of channels	9 bands
Delivery set	System, Antenna, Laptop, Power supply
Dimensions, HWD	490x420X175 mm
Weight	10 kg
Shipment	Worldwide

Review

Specifications

Application

Download

Purpose: GSM/UMTS/LTE Selective Jamming

Cellular Selective IMSI blocker has been designed for selective blocking of GSM/UMTS/LTE communications. Based on the Active BTS infrastructure, Cellular Selective IMSI blocker allows authorized GSM/UMTS/LTE mobile subscribers to use their mobile devices as usual, initiate or receive calls, send text messages, etc., while still being in the vicinity of the system; at the same time unauthorized phones are denied of cellular services. Cellular Selective IMSI blocker is available in various configurations to suit various conditions and match the requirements of every customer.

Summary:

Selective Blocking of GSM/UMTS/LTE Phones

White and Black mobile lists

Up to 4 GSM and 5 UMTS and LTE Bands

Various Configurations

Features:

Selective Blocking of GSM Phones

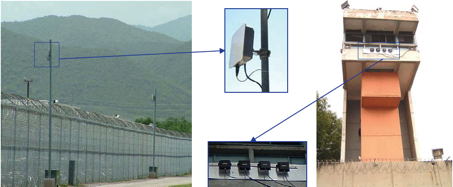

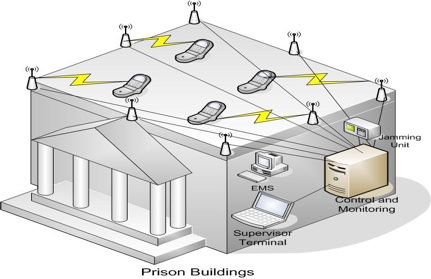

Cellular Selective IMSI blocker enables to define the designated list of GSM/UMTS/LTE phones. When operated, the system blocks all phones in the list of unauthorized MS/UE, while allowing authorized phones to continue functioning normally. This makes Cellular Selective IMSI blocker an ideal solution for prisons and jailing facilities, preventing inmates from unsupervised communications with the world outside the prison walls, and at the same time allowing the prison staff to continue using their GSM/UMTS/LTE phones as usual. The solution can also work in strategic installations such as power plants, ports, etc., and is suitable for tactical situations (such as hostages’ scenarios).

GSM and UMTS Bands, Various Configurations

Cellular Selective IMSI blocker is available in several configurations: fixed, vehicle-mounted or carry-on. While fixed or vehicle mounted installations can be fed from an external power source, the carried unit performs for hours using a set of internal batteries that can be recharged or replaced when needed. The unit can be easily packed in standard bags or suitcases or mounted on a vehicle to allow covert operation in populated areas. Cellular Selective IMSI blocker supports up to 4 GSM bands (850, 900, 1800, 1900), making it applicable to any location worldwide that features an operating GSM network. The 3G module supports up to 5 UMTS bands (2100, 1900, 1700, 900, 850).

File Title	Release Date	File Type	Size (mb)	Action
End User Certificate (EUC) to apply for purchase	03-03-2021	Documentation (pdf)	0.09 MB	download

To access this product file, get partner STE status

Supported frequency bands	Two bands of the following: GSM-850 (824.0–849.0 / 869.0–894.0), P-GSM-900 (890.2–914.8 / 935.2–959.8), DCS-1800 (1710.2–1784.8 / 1805.2–1879.8), PCS-1900 (1850.0–1910.0 / 1930.0–1990.0) Two bands of the following: UMTS I 2100 (1920–1980 / 2110–2170), UMTS II 1900 (1850–1910 / 1930–1990) UMTS IV 1700 (1710–1755 / 2110–2155) UMTS V 850 (824–849 / 869–894) UMTS VII 900 (880–915 / 925–960) LTE 700, 800, 1800, 2300, 2600
Transmission output power	Depends on configuration (10 mW – 100W total)
Signal Source	PLL synthesized
Power supply	Battery / 90 – 220VAC / 12VDC
Antenna	Depends on configuration (directional / omni-directional)
Dimensions	Depends on configuration
Weight	Depends on configuration (the smallest unit weighs 900g, not including operator’s UI device and battery)
Operating Temp.	0ºC – 40ºC
Humidity	5%-95% (non condensing)
