MainCatalogCellular interceptionMulti-band fully passive GSM interceptor (MGI)

Multi-band fully passive GSM interceptor (MGI) with A5/1 decipher

Print
Multi-band fully passive GSM interceptor (MGI)
Other photos
  • Multi-band fully passive GSM interceptor (MGI)
  • Multi-band fully passive GSM interceptor (MGI)
  • Multi-band fully passive GSM interceptor (MGI)
  • Multi-band fully passive GSM interceptor (MGI)
  • Multi-band fully passive GSM interceptor (MGI)
Main characteristics
SKU 1210
Vendor Intercept
Category Cellular interception
Standart 2G/900/1800/850/1900
System output Voice, SMS and call related data
Power source 115/230V AC, 250W
Active range (m) 20000
Features Intelligent Channel Processing System
Installation Stationary or portable
OS Windows 8, 10
Decryption A5.2, A5.1; 24 keys per sec
Battery Optional
Display 17” TFT, 1024x768
SMS(MMS) all languages supported
Antenna Single directional or omnidirectional
Memory SSD 6 TB
Q'ty of channels 128 GSM channels (up to 1024 voice channel)
Connectors USB, RJ-45
Protocols IMEI, IMSI, TMSI
Delivery set Receiver, Decipher, Laptop, Antenna, P/S, Manuals
Dimensions, HWD 16.3”x8.9”x12.8"
Weight 10 kg
Shipment According to EUC


Attention

We sell systems at the lowest prices on the market.
We are also ready to provide a free demo in our office or a demo on a paid basis on the side of a government customer.
If you are charged in advance for a demo or refuse to provide it, and also offer prices lower than ours, most likely you are dealing with scammers.

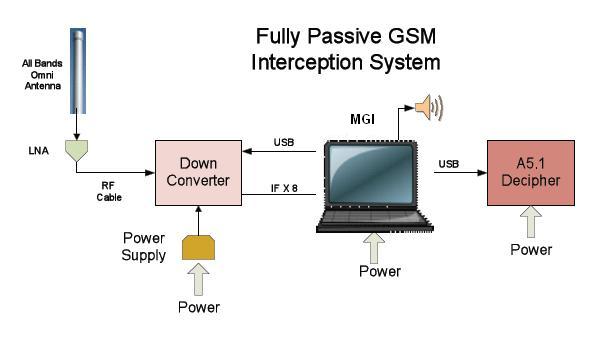

Multi-band fully passive GSM interception system - MGI

GSM Traffic Recording System
Multi-band fully passive GSM interception system designed to record the entire traffic occurring between Base Transmitting Stations (BTS) and Mobile Stations (MS) located within the system’s operational range. This means literally tens or even hundreds of simultaneous calls.

“Fully passive” means that:

MGI does not have any transmitting parts;
MGI does not interfere with GSM networks and mobile phones;
MGI’ operation is completely undetectable.

Recorded information can be processed either on-line or off-line.

MGI can intercept:

Voice communication;
SMS messages;
Primary and secondary DTMF tones;
Call related information

Deciphering capabilities

The system supports both types of encryption implemented in GSM networks – A5/1 and A5/2.

A5/2 real-time decipher is a software based solution; it works as a background application. Average deciphering time is 5 msec.
A5/1 decipher is a separate device connected directly or remotely to the MGI. For more information about A5/1 deciphering, please refer to the RTDM51 description
We recommend to use with MGI quick decipher (up to 24 keys per sec)

Added module of global geolocation of subscribers (optional)

File Title Release Date File Type Size (mb) Action
Multi-channel passive GSM interceptor (Leaflet) 10-23-2017 Documentation (pdf) 0.24 MB download
End User Certificate (EUC) to apply for purchase 03-03-2021 Documentation (pdf) 0.09 MB download

To access this product file, get partner STE status


File Title Release Date File Type Size (mb) Action
Multi-channel passive GSM interceptor (Leaflet) 10-23-2017 Documentation (pdf) 0.24 MB download
End User Certificate (EUC) to apply for purchase 03-03-2021 Documentation (pdf) 0.09 MB download

To access this product file, get partner STE status


Advantages of MGI

Multi-band Real Time fully passive GSM interceptor with A5/2 & A5/1 Real time decipher

red1.jpg 48 base stations can be monitored at the same time
red1.jpg Hopping of channels and handover
red1.jpg Deciphering time is less than 10 milliseconds per key, that allows to listen more than 300 conversations simultaneously
red1.jpg No miss even one conversation thanks to an improved channel processing algorithm
red1.jpg Separate antennas for the direct and reverse channels
red1.jpg External low-noise high gain antenna amplifiers in the kit – up to 30db - get the best performance for reverse channel
red1.jpg Own terminal for secure remote control
red1.jpg Several systems can work and managed together
red1.jpg Only 15 kg compact portable form factor

File Title Release Date File Type Size (mb) Action
Multi-channel passive GSM interceptor (Leaflet) 10-23-2017 Documentation (pdf) 0.24 MB download
End User Certificate (EUC) to apply for purchase 03-03-2021 Documentation (pdf) 0.09 MB download

To access this product file, get partner STE status


red1.jpg Demo or training are carried out in our premises or in the client's country, subject to an official invitation from government agencies.

red1.jpg We provide online demos only to existing clients with whom we have successful experience of cooperation.

red1.jpg We do not provide free training. If you are not familiar with the subject, links to training courses are here.

red1.jpg To apply for a demo or training you should provide a completed end user certificate

File Title Release Date File Type Size (mb) Action
Multi-channel passive GSM interceptor (Leaflet) 10-23-2017 Documentation (pdf) 0.24 MB download
End User Certificate (EUC) to apply for purchase 03-03-2021 Documentation (pdf) 0.09 MB download

To access this product file, get partner STE status

File Title Release Date File Type Size (mb) Action
Multi-channel passive GSM interceptor (Leaflet) 10-23-2017 Documentation (pdf) 0.24 MB download
End User Certificate (EUC) to apply for purchase 03-03-2021 Documentation (pdf) 0.09 MB download

To access this product file, get partner STE status

Additional Product Information
Added module of global geolocation of subscribers (optional)
