PIRANHA. Multifunction detection device
Piranha
|
Main characteristics
|
|||||||||||||||||||||||||||||||||||
Multifunction detection device ST131 PIRANHA-II was designed for detection and localization of covert surveillance devices (CSD) used for surreptitious obtaining of information, as well as localization of natural and artificial sources of threats of information leakage. Technical capabilities and characteristics of the detector allow user to find almost all hazardous types of surveillance equipment, as well as define possible threats of data leakage. The detector has the best “price/capabilities” ratio among same class devices.
ST131N PIRANHA-II – the modification that includes option of non-linear junction detector for localization of surveillance devices which and are connected to an analyzing wire. Almost all surveillance equipment contains semiconductors (transistors, diodes and etc.) that are normally used as part of power supply for overvoltage protection. The operating principle is based on generation of stable sinewave signal into the wire and analysis of returned at a harmonic multiples frequency level signal. The presence of 3rd harmonic frequencies is a reflection of the fact that semiconductor is connected.
ST131 can detect covert surveillance devices which transfer information by radio channel, including:
• Radio microphones as well as devices with storage and subsequent transfer of information (burst transmitter) and Frequency Hopping Spread Spectrum (FHSS)
• Telephone radio broadcasting devices
• Radio stethoscopes
• Wireless video cameras
• Unauthorized mobile phones and modems of CDMA, GSM, UMTS, DECT standards
• Devices which use digital channels of data transmission (WLAN and BLUETOOTH)
• Radio beacons for object movement tracking
• The CSD which use AC power, telephone, security and fire alarm lines for information transfer
• The CSD which use infra-red range for information transmission
• The CSD which use ultrasonic frequency range for information transmission
• Natural and artificial sources of threats of information leakage, including:
Mechanical vibrations that were transformed into an electrical signal which can be transmitted through wire lines (AC power, telephone, security, fire alarm and etc.) Places of high possibility of acoustic and vibroacoustic information leakage due to weak noise insulation.
The design of the devices of the series PIRANIA provides for two main modes of operation:

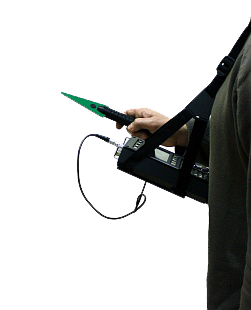

• Portable, using the capabilities of the main unit and additional devices

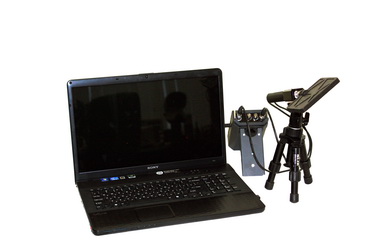

• Stationary using the original software Piranha.pro
 |  |
| File Title | Release Date | File Type | Size (mb) | Action |
|---|---|---|---|---|
| PIRANHA. Multifunction detection device | 07-23-2019 | Documentation (pdf) | 1.62 MB |  download |
To access this product file, get partner STE status

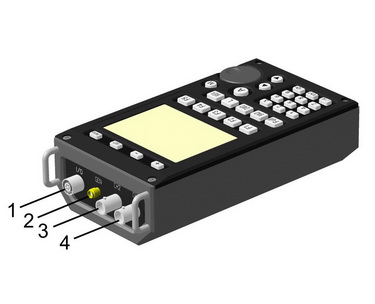

 | 1. Receiving-transmitting and control socket in RADIO channel as well as for connection of SHF and infrared detectors.
2. Socket for connection of transducers operating in ACOUSTIC channel and Magnetic Field Probe 3. Socket for connection additional Probes 4. Socket for connection of UHF convertor (RADIO channel) and wire line adapter (WIRE LINE channel) 5. Valcoder |
 |

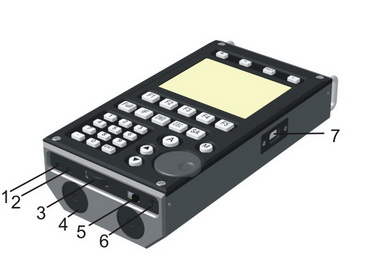

1. Line Out
2. “3.5” socket for connection of headphones
3. Volume
4. Battery compartment covers
5. Power ON/OFF
6. Power supply socket
7. USB socketîä
|
 |

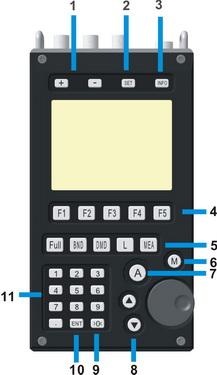

1. “+” and “–” increase/decrease of display brightness level and switching between the bands
2. “SET” entry in main MENU
3. “INFO” – entry in the current settings indication of the device
4. CONTEXT BUTTONS
Purpose of the context buttons F1 – F5 indicated in the lower line of the display depends on
the selected detecting channel and operating mode in this channel.
5. FUNCTIONAL BUTTONS
“Full“- switching on the mode FULL RANGE
“BND” – switching on the mode BAND
“DMD” – switching on the mode DEMODULATION
“L” – switching on the sub-mode SCALE
“MEA” – access to measuring function
6. “Ì” – switching in sub-mode MEMORY
7. “À” – switching in sub-mode AUTOMATIC ANALYZING 8. “><” – manual selection of noise level relative to zero value and movement of items in the MENU
9. “>0<” – automatic selection of noise level relative to zero value
10. “ENT” -enter (press VALCODER also equal to press Enter)
11. “0-9, .” – digital keyboard
|
| File Title | Release Date | File Type | Size (mb) | Action |
|---|---|---|---|---|
| PIRANHA. Multifunction detection device | 07-23-2019 | Documentation (pdf) | 1.62 MB | download |
To access this product file, get partner STE status
| WIRE LINE ADAPTER ST131.AWL | UHF CONVERTER ST131.UHF |
 |  |
|
1. Bananas socket
2. Ground connector
3. RJ-45 socket
4. Indicators of voltage in Line (LINE)
5. Indicator of overload of signals (OVERLOAD)
6. Indicator of power supply and link with
the main unit (PWR/LINK)
|
1. TNC socket
2. Thread opening ¼”
3. Switching-on and battery discharge indicator
4. Indicator intensity of data exchange
5. Power switch ON/OFF
6. Battery compartment cover
|
| RADIO WIRE LINE ADAPTER ST131.RAWL | UHF ANTENNA (ST131.UHF.A) |
 |  |
|

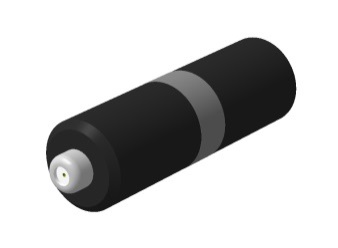

ST131.RAWL is intended to operate
the WIRE LINE channel in the frequency
range of 30 – 1000 MHz.
It has installed components that
protects against failure of the input circuits
of the UHF converter

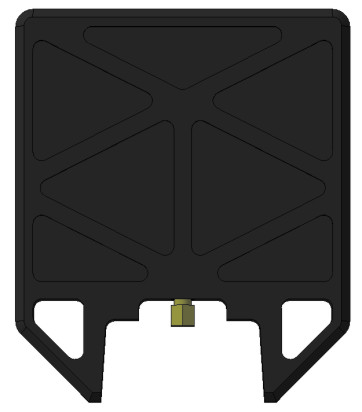

| ST131.UHF.A is a broadband passive antenna |
| File Title | Release Date | File Type | Size (mb) | Action |
|---|---|---|---|---|
| PIRANHA. Multifunction detection device | 07-23-2019 | Documentation (pdf) | 1.62 MB | download |
To access this product file, get partner STE status
DIGITAL SIGNAL PROCESSING MODULE
| Simultaneous processing frequency range | 0.01 – 30 MHz |
| Resolution ADC | 10, 14, 16 bit |
| Number of FFT points | 32768 (PC mode), 512 (main unit) |
| Bandwidth | 0.0005 – 10 MHz |
| Demodulation types | AM, FM, SSB, TV (AV) |
RADIO CHANNEL
| Frequency range 1 | Digital signal processing module | 0.01 – 30 MHz |
| Displayed noise level | Within the whole bandwidth | -110 dBm |
| Within DDC bandwidth 1 kHz | -150 dBm | |
| Value of the possible bandwidth, MHz | 10, 5, 2, 1, 0.5, 0.2, 0.1, 0.05, 0.02, 0.01, 0.005, 0.002, 0.001, 0.0005 | |
| Frequency range 2 | UHF converter | 30 – 4400 MHz |
| Displayed noise level | Within the whole bandwidth | -110 dBm (PC mode), -90 dBm (main unit) |
| Within DDC bandwidth 1 kHz | – 130dBm | |
| Input signal max level | 5 dBm | |
| Sweep speed max | 10 GHz/sec | |
| Value of the possible bandwidth, MHz | 10, 5, 2, 1, 0.5, 0.2, 0.1, 0.05, 0.02, 0.01, 0.005, 0.002, 0.001, 0.0005 | |
| Identified data transfer standards | CDMA, GSM, 3G,4G, WLAN, BLUETOOTH, DECT | |
| Frequency range 3 | SHF Detector ST131.SHF | 4000 – 18000 MHz |
| Threshold sensitivity | -65 W/cm2 | |
| Antenna beamwidth | 60-90 grad | |
WIRE LINE CHANNEL
| Frequency range 1 | 0.01 – 30 MHz | |
| Displayed noise level | in full range | – 90 (120 for PC mode) dBm |
| at 1 kHz band for Main Unit | -125 dBm | |
| Input signal max level | 20 dBm | |
| Max permitted input voltage | 380V | |
| Value of bandwidth IF, kHz | 6800, 2500, 630, 150, 75, 40, 10, 5, 1 e` 0.5 | |
| Gain input amplifier | -5, 1, 7, 13, 19, 25, 31, A`KG | |
| Frequency range 2 | 0.3 – 15 KHz | |
| Displayed noise level in full range, not worse | -115 (140 for PC mode) dBm | |
| Input signal max level | 20 dBm | |
| Gain input amplifier | 14, 26, 38, 44, 50, 56, AKG | |
| Common-mode interference attenuation factor | 60 dB | |
| Max permitted input voltage | 250V | |
| Frequency range 3 | 30 – 3000 MHz | |
OPTICAL CHANNEL
| Dynamic range | 60 dB |
| Frequency range | 0.01-30 Mhz |
| INFRARED PROBE | |
| Spectral range | 770-1600 nm |
| Angle of sight | 30 grad |
| Wire length | 1.5 |
ACOUSTOELECTRIC CHANNEL
| Frequency range | 0.01 – 125 KHz | |
| Displayed noise level | in full range | -100 (148 for PC) dBm |
| at 1 kHz band for Main Unit | -120 dBm | |
| Input signal max level | -5 dBm | |
| Gain input amplifier | 6, 14,20, 26, 34 e` 40 | |
| MAGNETIC FIELD PROBE | ||
| Frequency range | 30 – 30000 Hz | |
| Transformation ratio (1000Hz) | 1.00±0.01 B*m/A | |
| Threshold sensitivity, less than | 2*10(-6) A/m*Hz(1/2) | |
NON -LINEAR JUNCTION DETECTOR (ST131N only)
| Frequency of test signal | 150-220 kHz |
MAIN UNIT
| Dimensions | 190x97x50 mm |
| Indication | 3.5” 240×320, TFT 262144 colors |
| Interface | USB 2.0, 200 Mbit/s |
| Power supply | 6 AA batteries (rechargeable batteries) |
