Suppressor of UAV based on RF sensors and NV camera
The newest device
Drone Suppressor
|
Main characteristics
|
|||||||||||||||||||||||||||||
An economical and effective solution for intercepting of civilian UAV. Does not contain expensive radars.
The drones interception system consists of powerful jammers, radio frequency and optical sensors and can be combined into groups of several systems to protect large areas. The system is controlled by a special software package for UAV monitoring

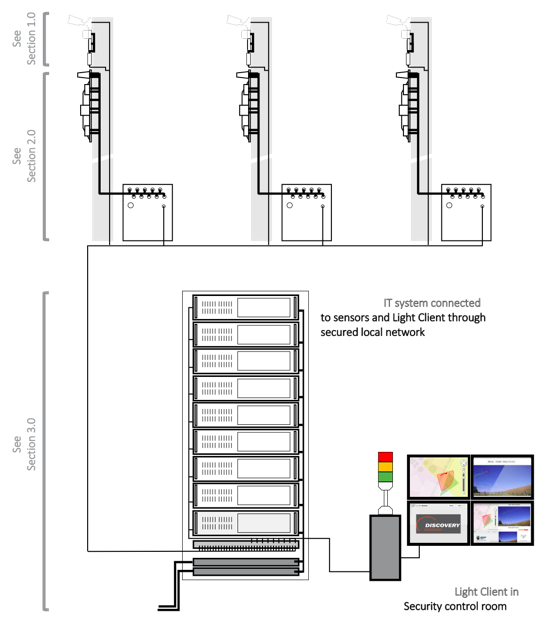

Recommended mounting for a group of one optical sensor and one Radio-frequency sensor with antennas and cables. DroneWatch sensors are PoE ready, please ensure you either have a direct connection with PoE capable switches (up to 30 watts per sensor) or PoE power injectors installed between switches and sensors.
| File Title | Release Date | File Type | Size (mb) | Action |
|---|---|---|---|---|
| RF sensors based UAV Suppression System | 07-24-2017 | Documentation (pdf) | 2.95 MB |  download |
| End User Certificate (EUC) to apply for purchase | 03-03-2021 | Documentation (pdf) | 0.09 MB | download |
To access this product file, get partner STE status

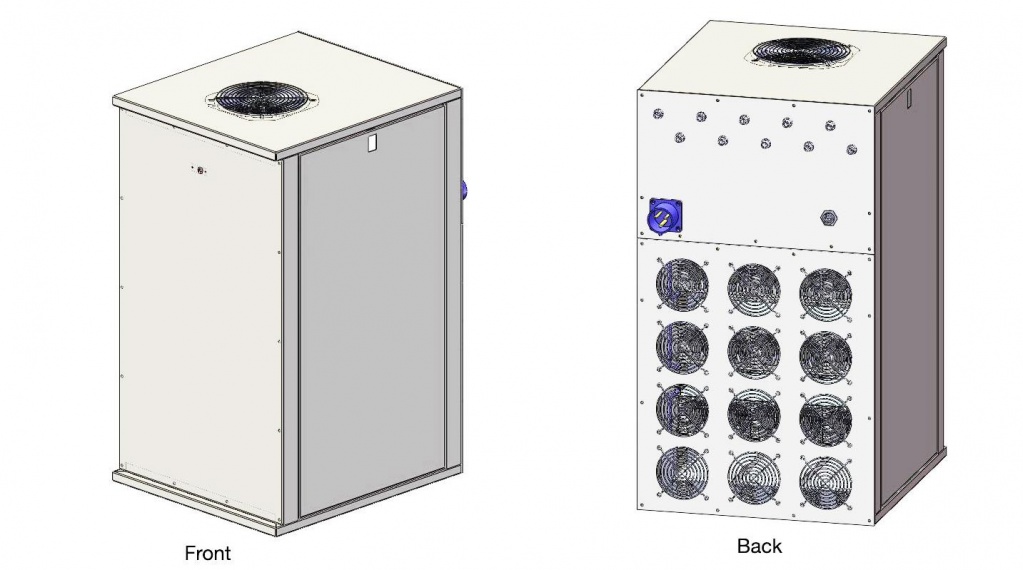

JAMMING FREQUENCY BANDS / POWER / APPLICATIONS
432-436 MHz 125W Remote control
900-1170 MHZ 200W Remote control
1171-1380 MHz 200W GPS (L2, L3, L4, L5), GLONASS (L2, L3), Galileo (E5, E6)
1570-1620 MHz 150W GPS (L1), GLONASS (L1), Galileo (E1)
2400-2500 MHz 2x175W Wifi / remote control
5000-5400 MHz 2X50W Remote control
5400-5875 MHz 2X50W Wifi / remote control
TOTAL EMITTED POWER 1225W
RANGE Up to 1Km
BOX OPERATING CONDITIONS -10°C to +50°C
MATERIAL Metal case
SIZE 550 x 700 x 950mm
WEIGHT 70kg
SYSTEM INPUT VOLTAGE 110 to 220VAC
INPUT POWER 4kW
SOFTWARE CONTROL Software remote control from the DroneWatch software interface with adjustable power (0%, 25%, 50%, 75%, 100%) for each frequency band, temperature control for each frequency band with alerts for high temperatures and VSWR alarms to detect antenna malfunction.
CONNECTORS 10x type N jacks, 1x RJ45 network socket DW-JM-01 is designed to work with DW-CA cables and DW-JA-01 antennas which are highly recommended to ensure optimal operations.
| File Title | Release Date | File Type | Size (mb) | Action |
|---|---|---|---|---|
| RF sensors based UAV Suppression System | 07-24-2017 | Documentation (pdf) | 2.95 MB | download |
| End User Certificate (EUC) to apply for purchase | 03-03-2021 | Documentation (pdf) | 0.09 MB | download |
To access this product file, get partner STE status

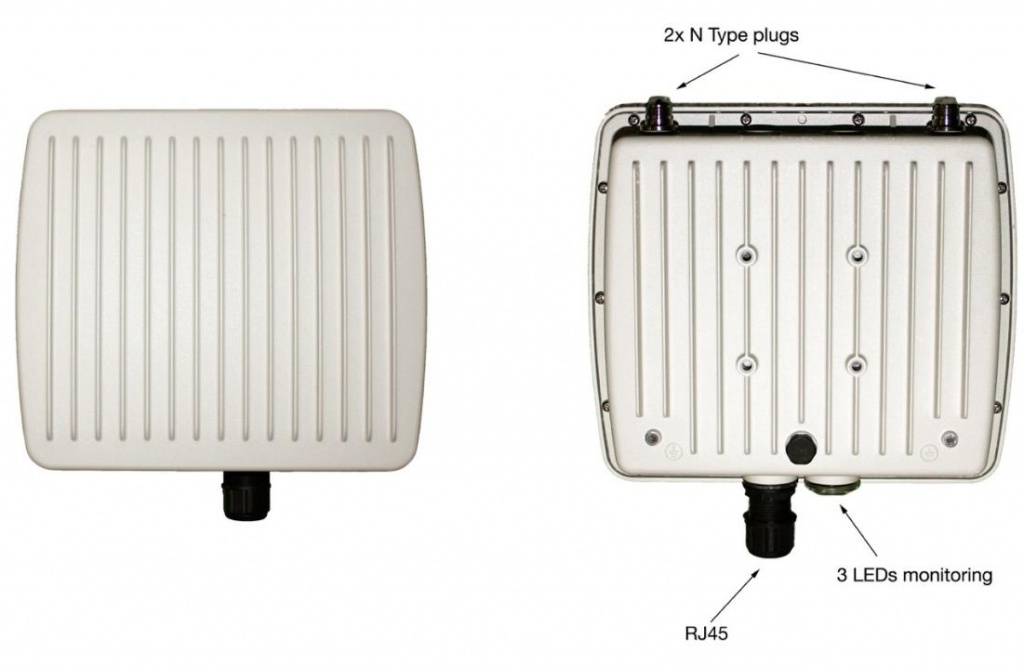

RF Sensors
Radio frequency detector enables real time detection of signal coming from any commercial UAVs.
RF sensor combines unique software and hardware technologies to ensure DroneWatch solutions’ accuracy, long range and the highest level of reliability in any conditions. Our radio frequency sensors are the backbone of DroneWatch’s long range detection solution as they provide unique data on transmission protocols and advanced signal analysis to DroneWatch systems.
 |
RF Detection:
Bands : 2.4 – 2.5GHz / 5.725 – 5.875GHz
Type : Radio frequency + Wifi
RANGE : Up to 500m
FOV : 90°
Box:
Material : Die cast alloy (AI-Si-Mg) with SurTec surface treatment
(high corrosive protection used in aerospace industry)
Color : White
Protection : IP67
Size : 250x140x37mm
System:
Operating Conditions : -10°C to 50°C
Outputs : 2x N type jacks / 1x RJ45 / 3 LEDs monitoring
Power : PoE (max 25.5W)
|

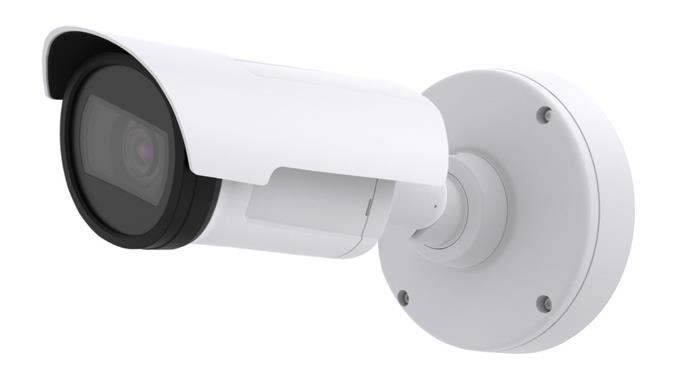

Optical Sensors
 |
VIDEO IMAGE SENSOR Progressive scan CMOS 1/3.2’’ LENS 2.8-9.8mm, F1.6
MINIMUM ILLUMINATION Color: 0.35 lux at F1.6 / B&W: 0.07 lux at F1.6
RESOLUTION 5MP / 2592x1944 HDTV 1080p
DAYLIGHT DETECTION RANGE Up to 150m
NIGHT DETECTION RANGE Up to 100m
FOV 92°
GENERAL MATERIAL Polyester polycarbonate blend
COLOR White
PROTECTION IP66
SIZE Ø132x260mm
WEIGHT 862g
SYSTEM
OPERATING CONDITIONS -30°C to 50°C OUTPUTS RJ45 plug
POWER PoE (max 12.8W)
|
| File Title | Release Date | File Type | Size (mb) | Action |
|---|---|---|---|---|
| RF sensors based UAV Suppression System | 07-24-2017 | Documentation (pdf) | 2.95 MB | download |
| End User Certificate (EUC) to apply for purchase | 03-03-2021 | Documentation (pdf) | 0.09 MB | download |
To access this product file, get partner STE status

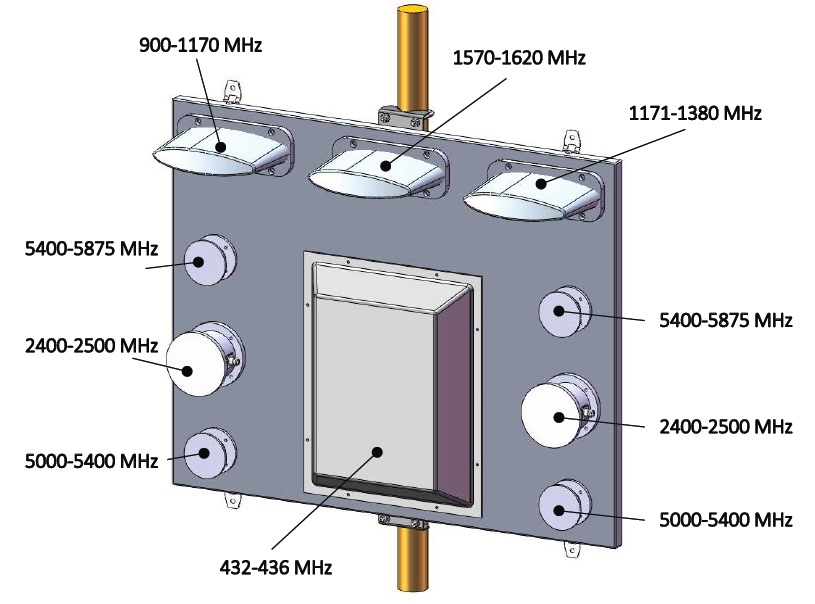

Jammer antenna panel combines all the antennas that work in conjunction with jamming system.
They are all high powered to provide a long range of action for the best level of protection.
 |
|
|

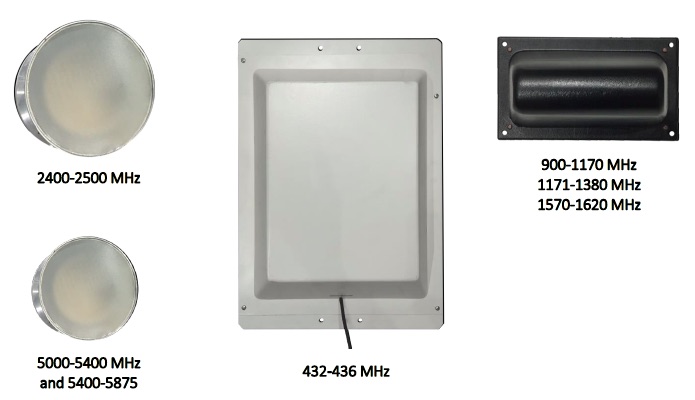

JAMMING ANTENNAS 432-436 MHz 1 antenna 900-1170 MHZ 1 antenna
1171-1380 MHz 1 antenna
1570-1620 MHz 1 antenna
2400-2500 MHz 2 antennas (for linear and vertical polarization)
5000-5400 MHz 2 antennas (for linear and vertical polarization)
5400-5875 MHz 2 antennas (for linear and vertical polarization)
RANGE up to 5Km with directional antenna and up to 3Km with Omni directional
PANEL OPERATING CONDITIONS -10°C to +50°C
SIZE 1000 x 800mm
WEIGHT 20kg
CONNECTORS 10x type N jacks
| |
