Ñommercial Cellular Location
Other photos
|
Main characteristics
|
|||||||||||||||

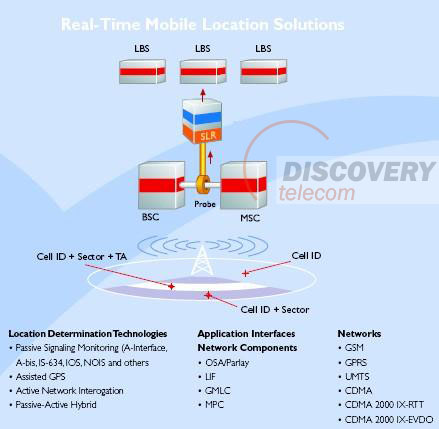

The Where is a state-of-the-art standard based GMLC/SLC/MPC solution offering powerful location tracking capabilities to Cellular Network operators and Law enforcement agencies. It provides a centralized and managed connection point to the operator's network for location-based services and applications. The platform supports numerous mobile positioning technologies ranging from Cell ID to high-accuracy Assisted GPS (of Qualcomm) in a cost effective implementation.
The Where system simplifies network complexity and provides a simple method of location determination to external applications by exporting a subscriber's location information using open standardized API. Those applications can therefore be independent of the underlying network technology. This architecture can be used by applications that operate within the network operator's domain or that are executed outside the core network.
Location Information
Based on the location information extracted from the signaling traffic, the Overlay system can provide such data as:
Location area Cell ID / BTS/ Node-B identification
Sector information with GSM Timing advance
High-accuracy GPS coordinates
Overlay Network Advantages
The Overlay system provides a number of advantages including:
A simple integration into the existing infrastructure
Immediate proven solution for current GSM, WCDMA / UMTS, CDMA & iDEN systems with a clearly-defined development path as the carrier's infrastructure evolves
Location capabilities provided without any additional load on the carrier's active components (passive solution)
Applications can be implemented without dependency on network infrastructure

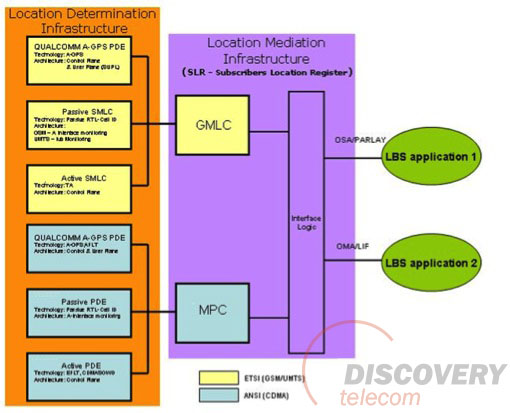

System Architecture The Where is an open location platform, comprising the following service architecture entities:
Active or Passive location determination elements Active signaling nodes (Active SMLC)
Passive signaling probes (Passive SMLC)
Location mediation
Open API for applications
Standards based solution GMLC/SMLC, MPC, SUPL (SLC/SPC)
Management module Septier
WhereTM system is designed for a modular approach. Thus it can be implemented on an operator's network in its entirety (including all of its components), or by using only certain components. Overlay Topology To implement this topology, network mediators are added to the network.
They monitor signaling links (GSM: A interface, A-bis, Gb, UMTS: IuCS, IuPS, IuB, CDMA: IS634,1X, IOS, NOIS) and extract the information required for applications.
This information is then sent to the server to distribute to applications. By using a separate component, which monitors the traffic, this configuration can be implemented without interfering with the working network topology, and can be further enhanced as and when the system evolves. Network Physical Connection The overlay system provides options of physical connection topologies: On-site monitoring where, at each site, all the interfaces provided are completely passive by using high-impedance bridging connections. Signaling mediation probes are distributed according to the carrier's infrastructure topology and all of the extracted location information is transmitted to the centrally-located server; or All target-signaling interfaces are duplicated at each monitoring site. The information is then transmitted to a centrally located monitoring site where all installed signaling mediation probes are locally-connected to the service capability server.
Demo or training of interception systems are carried out in our premises or in the client's country, subject to an official invitation from government agencies.
We provide online demos only to existing clients with whom we have successful experience of cooperation. We do not provide free training. If you are not familiar with the subject, links to training courses are here.You may also be interested in the following products
 |
 |
 |
||||||||||||||||||||||||||
|
